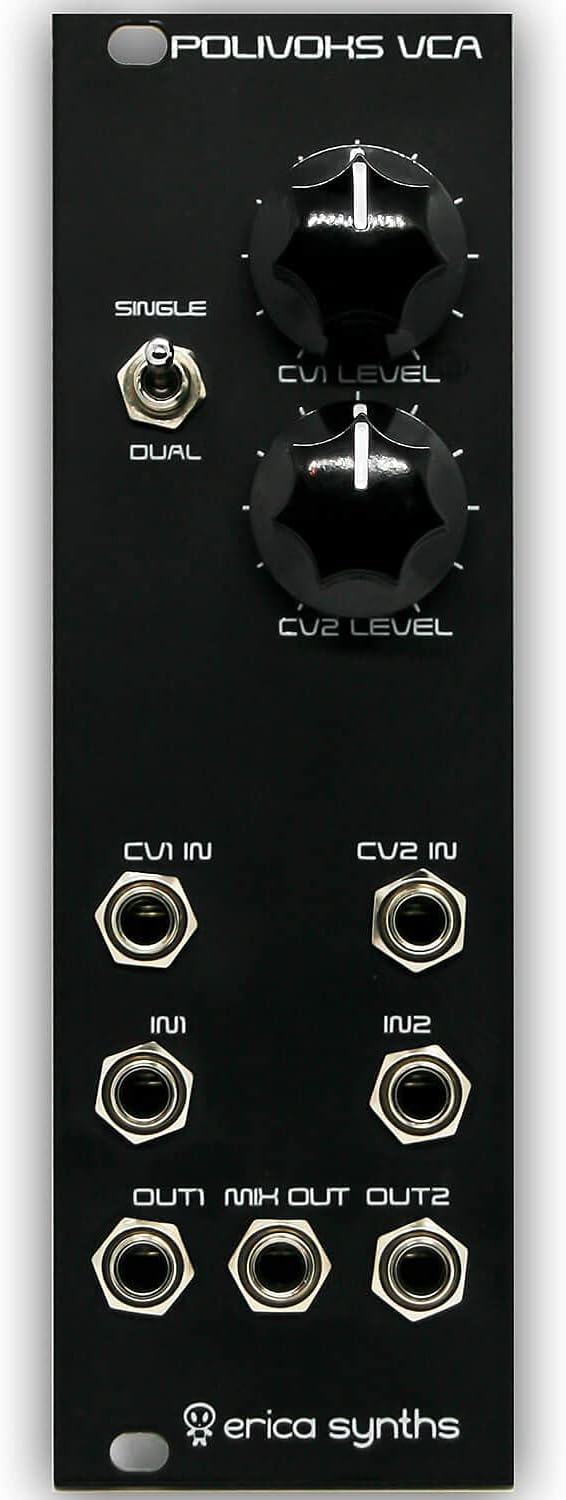

Erica Synths Polivoks Dual VCA II PCBs, Panel and AS3360 IC

Please note: this includes the PCBs, panel and the AS3360 IC only. No other parts are included. Please see the bill of materials online to source the rest of the parts needed.Erica Synths DIY Polivoks-inspired VCA is 35mm deep, skiff friendly, has solid mechanical construction and doesn’t require wiring.The PCBs include both PCBs, panel, and the AS3360 IC.Features:Single or Dual VCA modeCV level adjustment for each VCASummed audio output (lower signal gain, though)Skiff-friendly designThe Polivoks VCA has a distinctive architecture – two differential opamp-based VCAs in series, each for LFO and ADSR control over signal amplitude independently. Control voltage to attenuation behavior of this VCA is nonlinear and not logarithmic. It is kept authentic to the response of original Polivoks. Most parts of the VCA have been improved to achieve compatibility with eurorack signal and CV standards, higher dynamic range, better reliability, lower noise, accept higher signal levels, keep consistent behavior, self-tuning of two internal offsets and higher linearity, but the heart of it is kept the same. We also redesigned audio signal path, so that you can use it as two independent VCAs or two VCAs in series as in original Polivoks, plus summed signal output.Technical specifications:VCA gain: 1.2CV level: -10V…+10VAttenuation@0V CV: 80dBPanel width: 8HPModule depth: 35mmPower consumption: 24mA@+12V, 18mA@-12V

• Erica Synths DIY Polivoks-inspired VCA is 35mm deep and skiff friendly.
• Has solid mechanical construction and doesn’t require wiring.
• Single or Dual VCA mode
• CV level adjustment for each VCA
• Summed audio output (lower signal gain, though)
